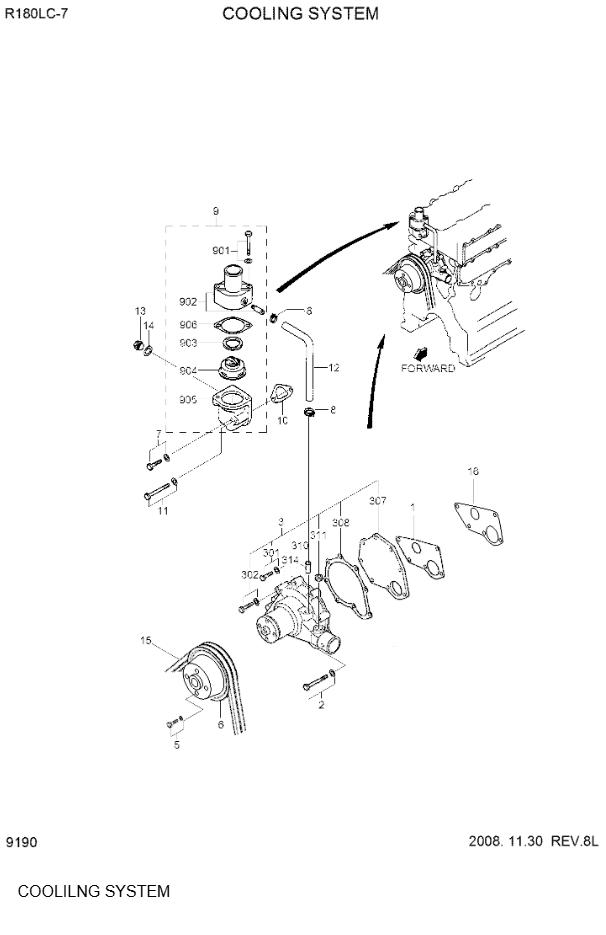

Parts on group COOLILNG SYSTEM:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | XJAF-00850 | [1] | GASKET | |
| 2. | XJAF-00159 | [2] | BOLT-W/WASHER | |

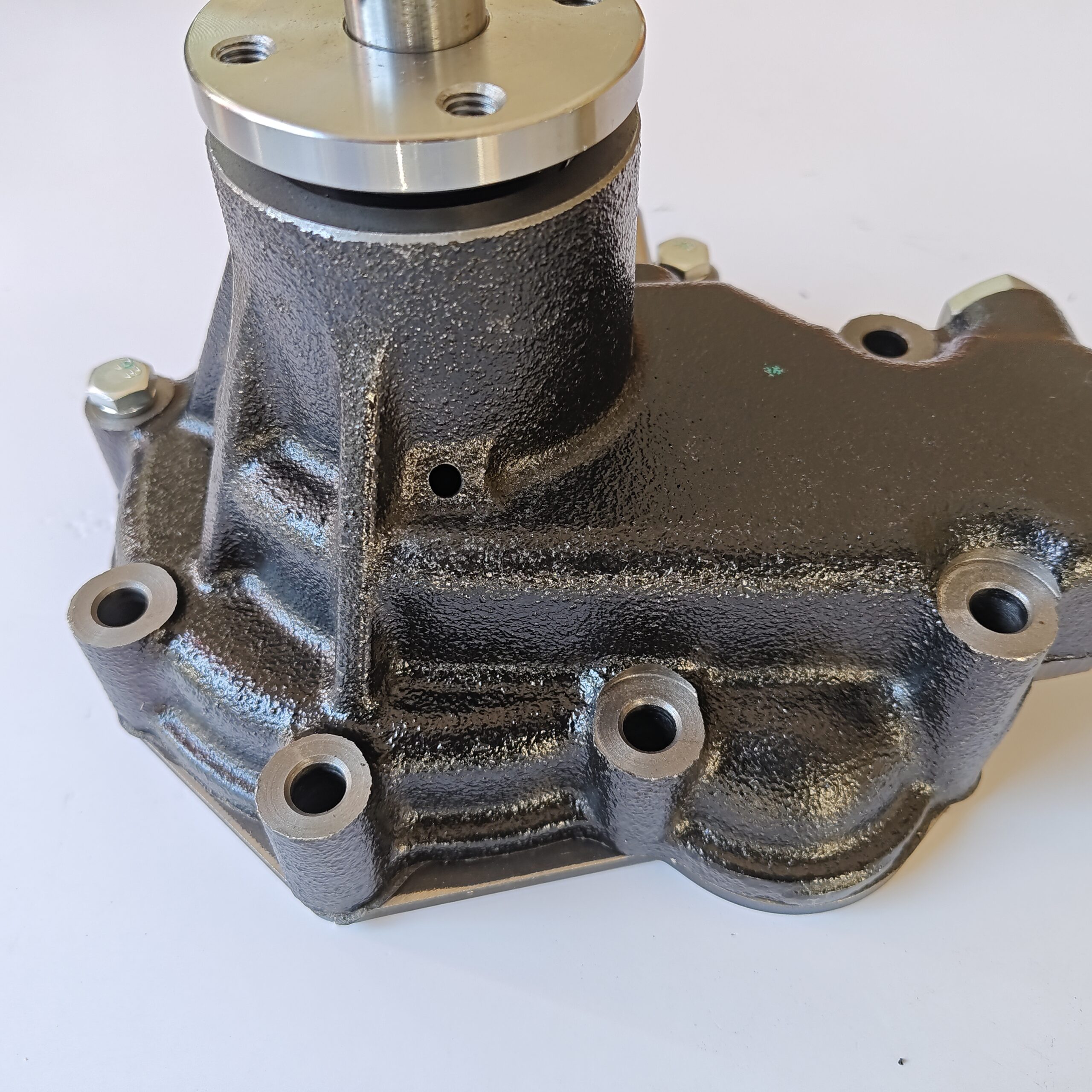

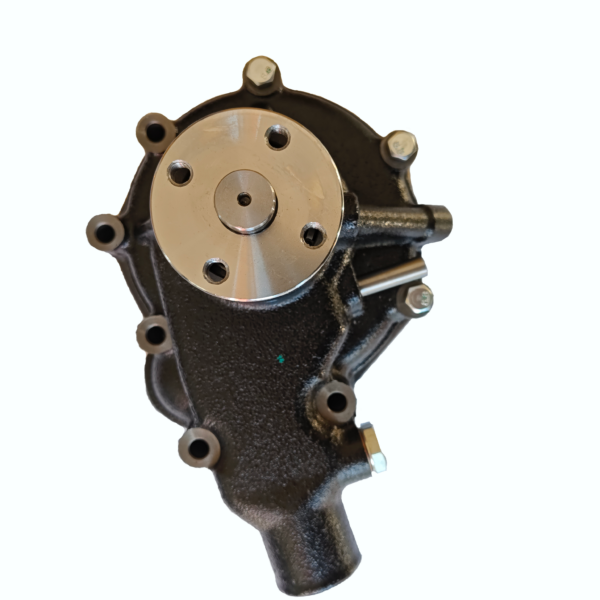

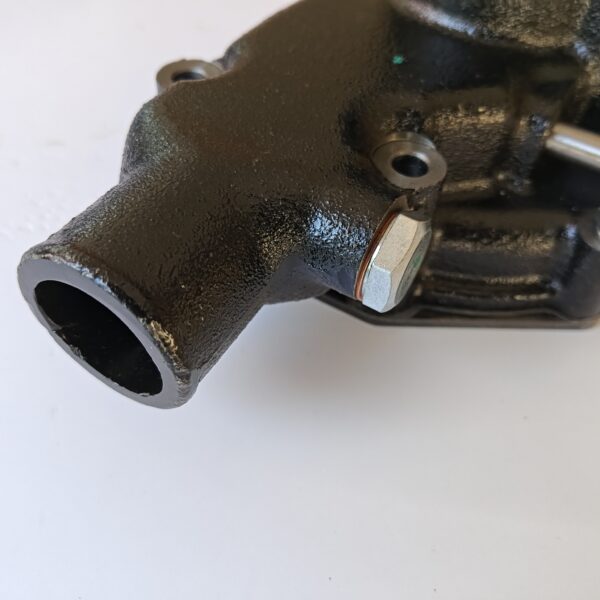

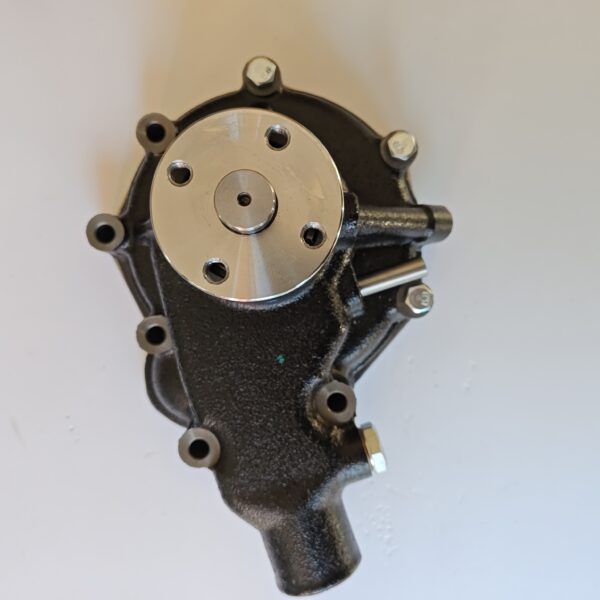

| 3. | XJAF-02693 | [1] | WATER PUMP ASSY | |
| 301. | XJAF-00379 | [2] | BOLT-W/WASHER | |
| 302. | XJAF-00317 | [1] | BOLT-W/WASHER | |
| 307. | XJAF-00852 | [1] | COVER-WATER PUMP | |
| 308. | XJAF-02694 | [1] | GASKET-WATER PUMP | |
| N310. | @ | [1] | PIPE-WATER PUMP | |
| N311. | XJAF-00854 | [1] | PLUG TAPERED | |
| N314. | @ | [1] | CASE-WATER PUMP | |
| 5. | XJAF-00230 | [4] | BOLT-W/WASHER | |
| 6. | XJAF-00729 | [1] | PULLEY-WATER PUMP | |
| 7. | XJAF-00730 | [1] | BOLT-W/WASHER | |
| 8. | XJAF-00731 | [2] | CLAMP-HOSE | |
| N9. | XJAF-00732 | [1] | THERMOSTAT ASSY | |
| 901. | XJAF-00730 | [2] | BOLT-W/WASHER | |
| 902. | XJAF-00733 | [1] | COVER ASSY | |
| 903. | XJAF-00734 | [1] | GASKET-WATER PUMP | |
| 904. | XJAF-00735 | [1] | THERMOSTAT | |
| 905. | XJAF-00736 | [1] | CASE-THERMOSTAT | |
| 906. | XJAF-00423 | [1] | GASKET | |
| 10. | XJAF-00737 | [1] | GASKET-WATER PUMP | |
| 11. | XJAF-00254 | [1] | BOLT-W/WASHER | |
| 12. | XJAF-00738 | [1] | HOSE-WATER | |
| 13. | XJAF-00418 | [1] | PLUG-DRAIN | |
| 14. | XJAF-00560 | [1] | GASKET-INLET MANIFOLD | |
| 15. | XJAF-00739 | [1] | V-BELT | |
| 16. | XJAF-02695 | [1] | GASKET-WATER PUMP | |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
