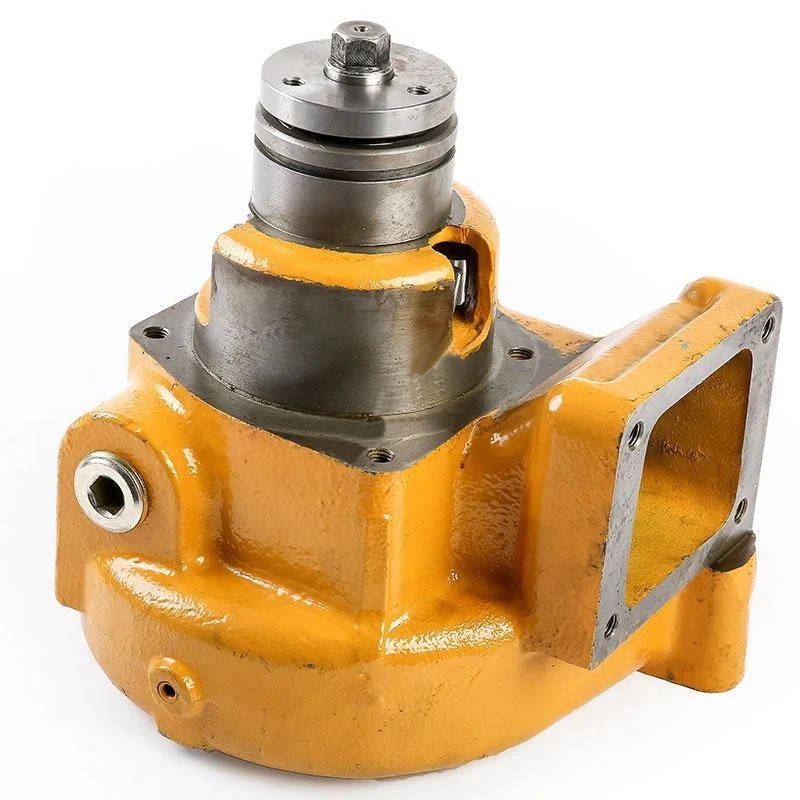

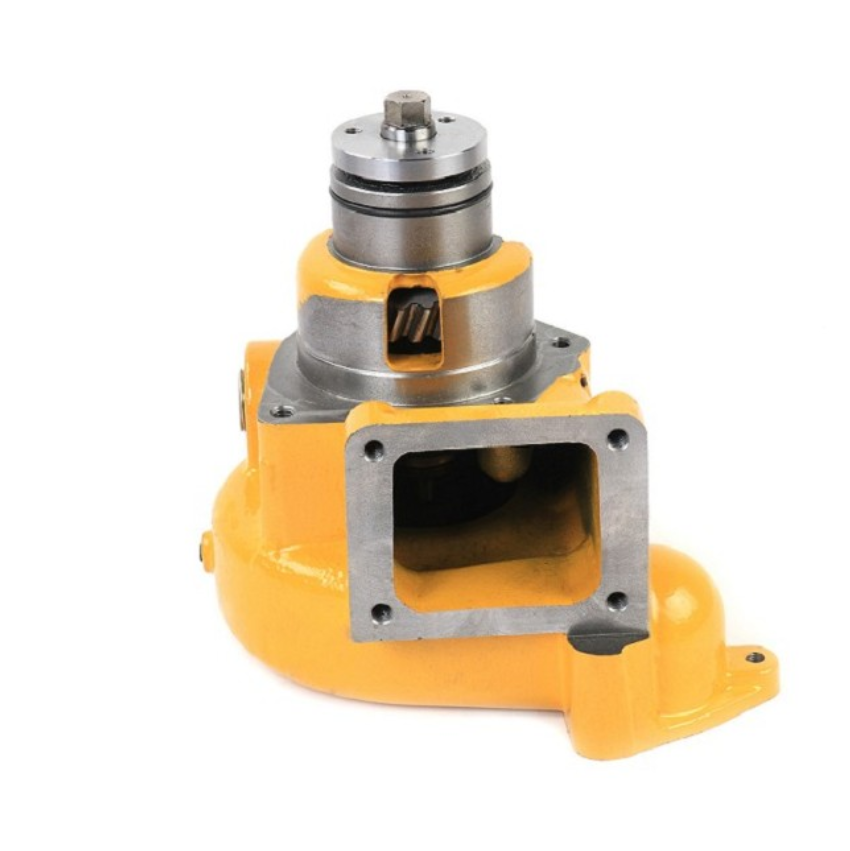

Water pump 6212-61-1203 for komatsu engine 6D140 S6D140 SA6D140 SA6D140E SAA6D140E

Parts Number: 6212-61-1203

Applications: for komatsu engine 6D140 S6D140 SA6D140 SA6D140E SAA6D140E

WATER PUMP

SA6D140E-3J-7 S/N 110001-UP

Parts on group :

Pos.Part NoQtyParts nameComments
  6212-61-1203[1]  WATER PUMP ASS’Y Komatsu OEM17 kg.
  [“SN: 110001-UP”] analogs:[“6212611303”, “6212611204”, “6212622100”, “6212611304”, “6212611200”, “6212611202”, “6212611201”, “6212611301”, “6212611302”, “6212621400”, “6212611305”, “6212611205”] |1.
   2.  6212-61-1220[1]  IMPELLER Komatsu1.26 kg.
  [“SN: 110001-UP”]
   3.  6212-61-1322[1]  SHAFT Komatsu China0.91 kg.
  [“SN: 110001-UP”] analogs:[“6261611310”]
   4.  6212-61-1410[1]  GEAR Komatsu0.65 kg.
  [“SN: 110001-UP”]
   5.  6210-61-1520[2]  SEAL,OIL (K6) Komatsu0.034 kg.
  [“SN: 110001-UP”]
   6.  04065-07225[1]  RING,SNAP Komatsu0.02 kg.
  [“SN: 110001-UP”]
   7.  6212-61-1370[1]  SPACER Komatsu0.115 kg.
  [“SN: 110001-UP”]
   8.  6212-61-1380[1]  SPACER Komatsu0.15 kg.
  [“SN: 110001-UP”]
   9.  06000-06305[1]  BEARING,BALL Komatsu0.235 kg.
  [“SN: 110001-UP”]
   10.  06030-06306[1]  BEARING,BALL Komatsu0.35 kg.
  [“SN: 110001-UP”]
   11.  6210-61-1350[1]  FLANGE Komatsu0.41 kg.
  [“SN: 110001-UP”]
   12.  6212-61-1150[1]  COVER Komatsu0.25 kg.
  [“SN: 110001-UP”]
   13.  6136-61-1130[1]  RING,SNAP Komatsu0.2 kg.
  [“SN: 110001-UP”]
   14.  07000-02145[1]  O-RING (K6) Komatsu China0.03 kg.
  [“SN: 110001-UP”] analogs:[“0700012145”]
   15.  02720-10104[1]  PLUG Komatsu0.013 kg.
  [“SN: 110001-UP”] analogs:[“0272020104”]
   16.  6211-61-1530[1]  SEAL¤ WATER (K6) Komatsu China0.03 kg.
  [“SN: 110001-UP”] analogs:[“6150611520”, “6211611521”, “6211611520”, “6211611532”, “6211611533”]
   17.  6212-61-1330[1]  RING Komatsu0.04 kg.
  [“SN: 110001-UP”]
   18.  07043-A1019[1]  PLUG Komatsu China
  [“SN: 110001-UP”]
   19.  07062-00000[1]  VALVE Komatsu0.013 kg.
  [“SN: 110001-UP”]
20.  07000-72115[1]  O-RING (K6) Komatsu OEM0.017 kg.
  [“SN: 110001-UP”] analogs:[“0700062115”, “R0700072115”]
21.  07000-72070[1]  O-RING (K6) Komatsu OEM0.004 kg.
  [“SN: 110001-UP”] analogs:[“0700062070”, “R0700072070”]
22.  01435-01095[3]  BOLT Komatsu0.059 kg.
  [“SN: 110001-UP”]
23.  01435-01080[1]  BOLT Komatsu0.052 kg.
  [“SN: 110001-UP”]
24.  6217-61-6350[1]  ELBOW Komatsu2.79 kg.
  [“SN: 110001-UP”]
25.  07730-50004[1]  VALVE Komatsu0.222 kg.
  [“SN: 110001-UP”] analogs:[“0773030004”]
26.  6217-61-6330[1]  GASKET (K6) Komatsu0.065 kg.
  [“SN: 110001-UP”]
27.  6217-61-6340[1]  GASKET (K6) Komatsu0.008 kg.
  [“SN: 110001-UP”]
28.  01437-11080[3]  BOLT Komatsu0.25 kg.
  [“SN: 110001-UP”] analogs:[“0143701080”, “6210818140”]
29.  01437-11030[3]  BOLT Komatsu China
  [“SN: 110001-UP”] analogs:[“6210819450”]
