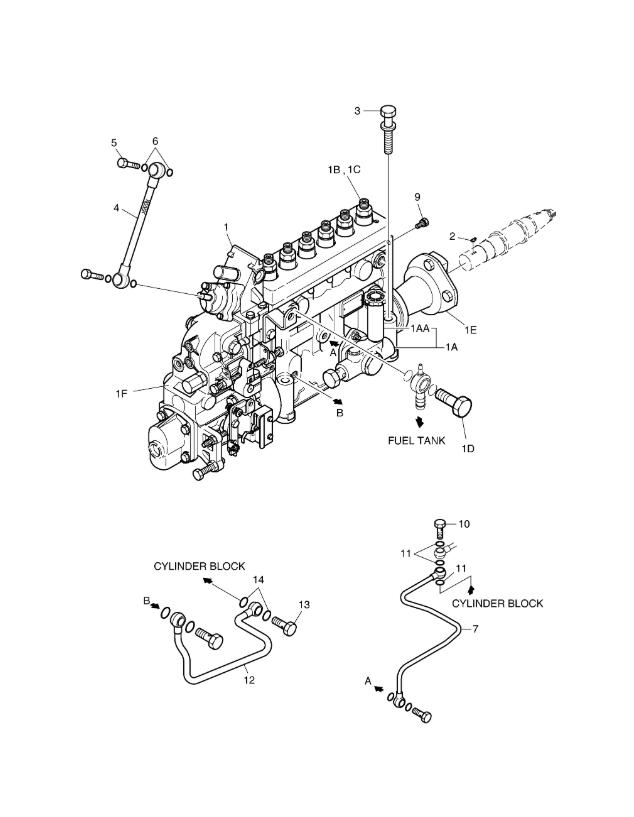

Parts on group SOLAR 340LC-V:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

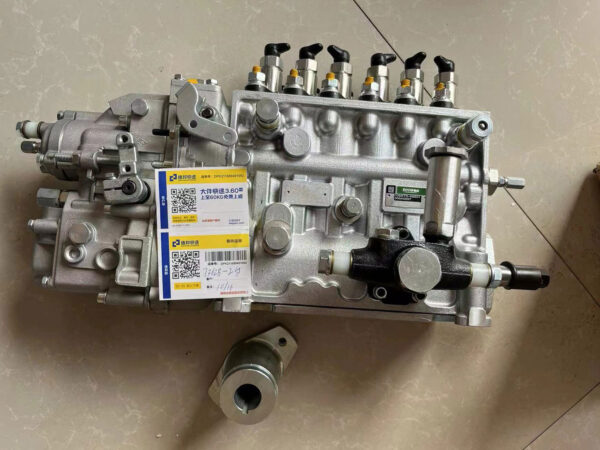

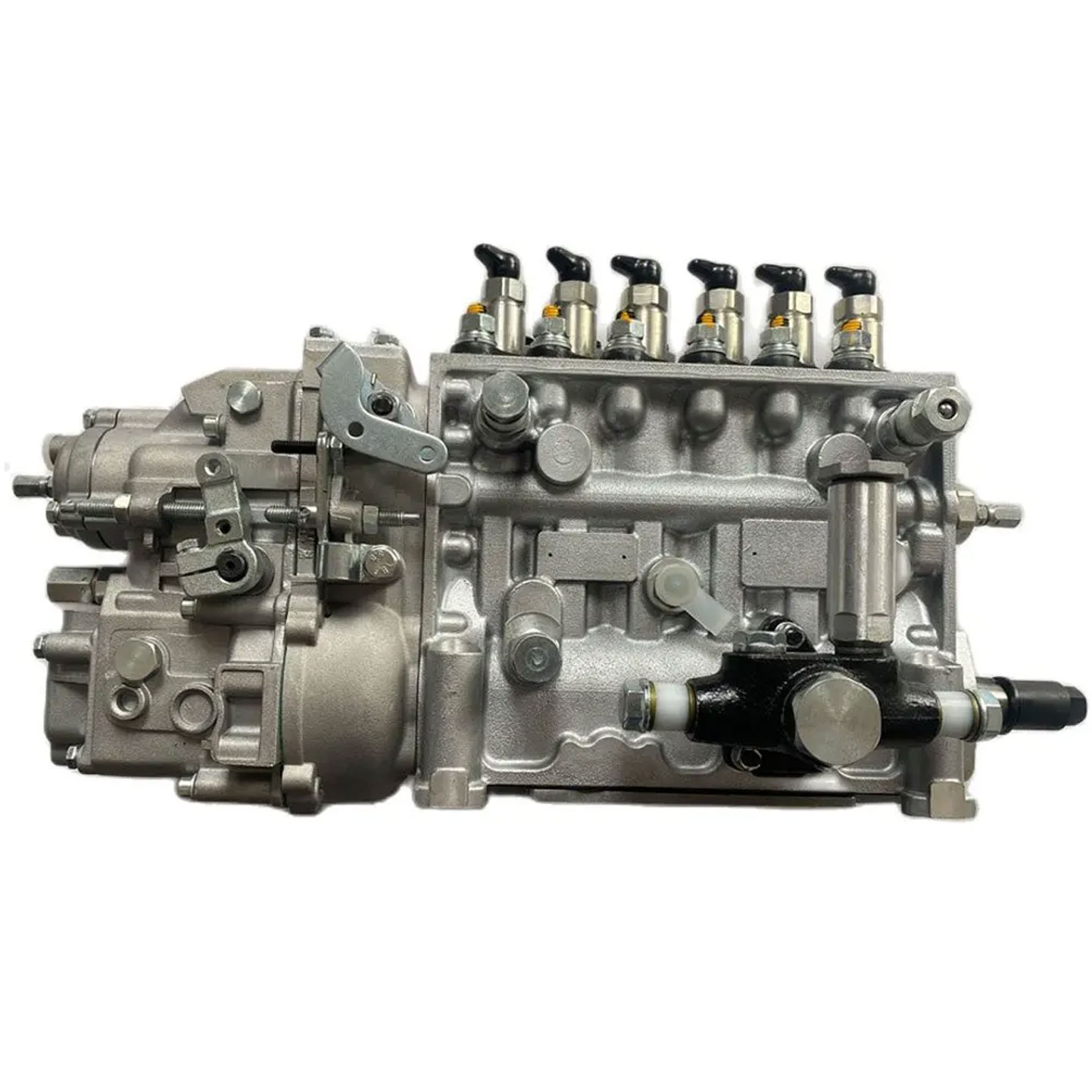

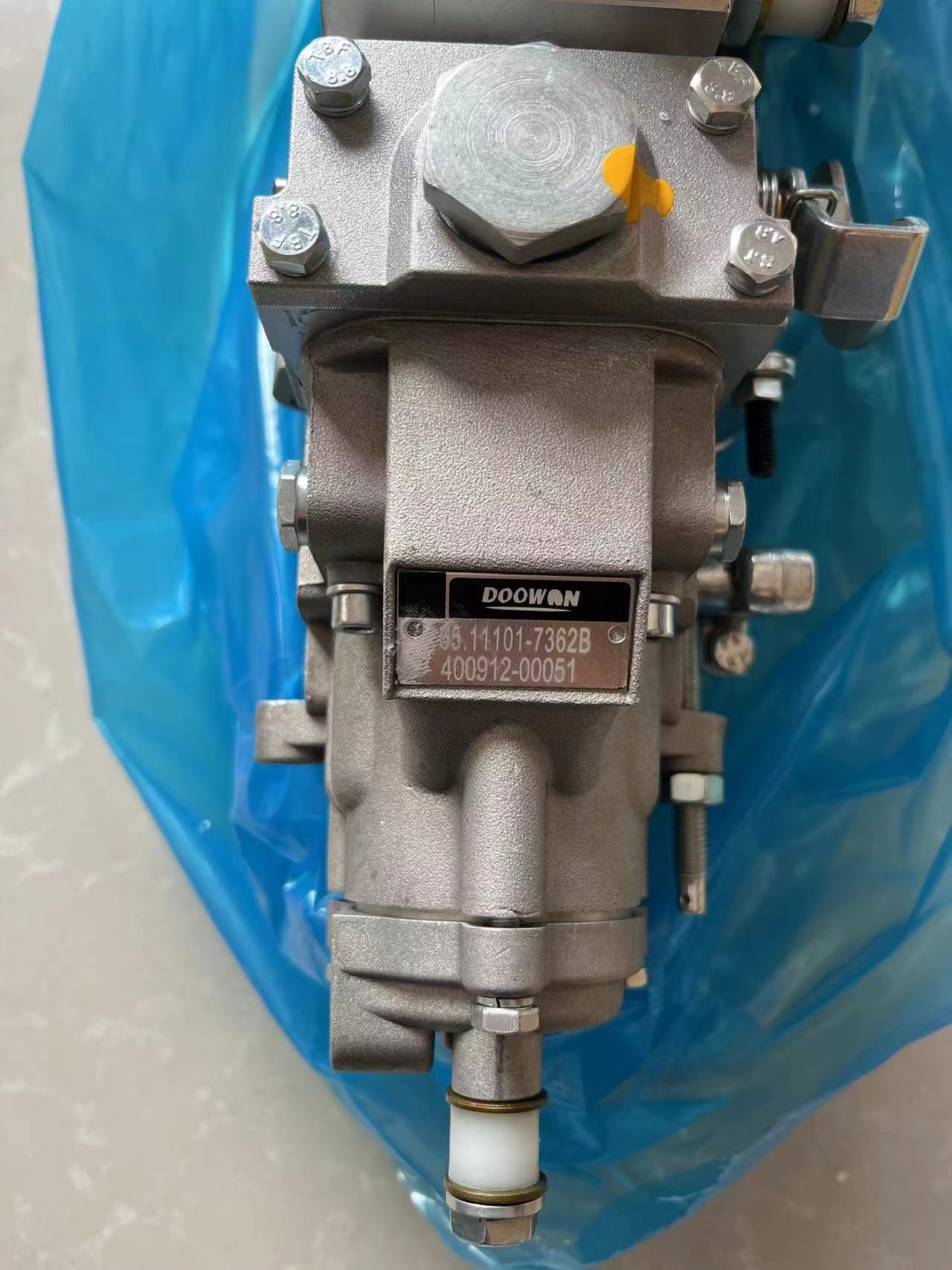

| 1. | 65.11101-7362A | [1] | INJECTION PUMP | 65.11101-7362B |
| 1. | 65.11101-7362B | [1] | INJECTION PUMP | |
| 1. | 400912-00051 | [1] | ||
| 1. | 65.11101-7362 | [1] | INJECTION PUMP | 65.11101-7362A |
| 10. | 65.98150-0050 | [1] | SCREW;HOLLOW | |
| 11. | 06.56180-0714 | [3] | RING;SEAL | |
| 12. | 65.05701-5624 | [1] | PIPE;OIL | |
| 13. | 06.78144-2204 | [1] | SCREW;HOLLOW | |
| 14. | 06.56190-0706 | [2] | SEAL RING | |
| 1A. | 105207-154A | [1] | ||
| 1AA. | 400908-00004 | [1] | . HAND PRIMING PUMP | |
| 1B. | 134160-7120 | [6] | DELIVERY VALVE | |
| 1C. | 134151-9020 | [6] | PLUNGER | |
| 1D. | 131424-4420 | [1] | VALVE;OVER FLOW | |
| 1E. | 65.11305-6004 | [1] | COUPLING | |
| 1F. | 105407-7590 | [1] | GOVERNOR | |
| 2. | 06.29141-0215 | [1] | KEY;WOODRUFF | |
| 3. | 06.01923-3228 | [4] | BOLT ASS’Y M10X85 | |
| 4. | 65.08301-6012 | [1] | AIR HOSE ASS’Y | |
| 5. | 65.98150-0053B | [1] | SCREW;HOLLOW | |
| 6. | 06.56180-0714 | [2] | RING;SEAL | |
| 7. | 65.05701-5313 | [1] | PIPE;OIL | |
| 9. | 06.01923-2910 | [1] | BOLT ASS’Y M6X12 |
