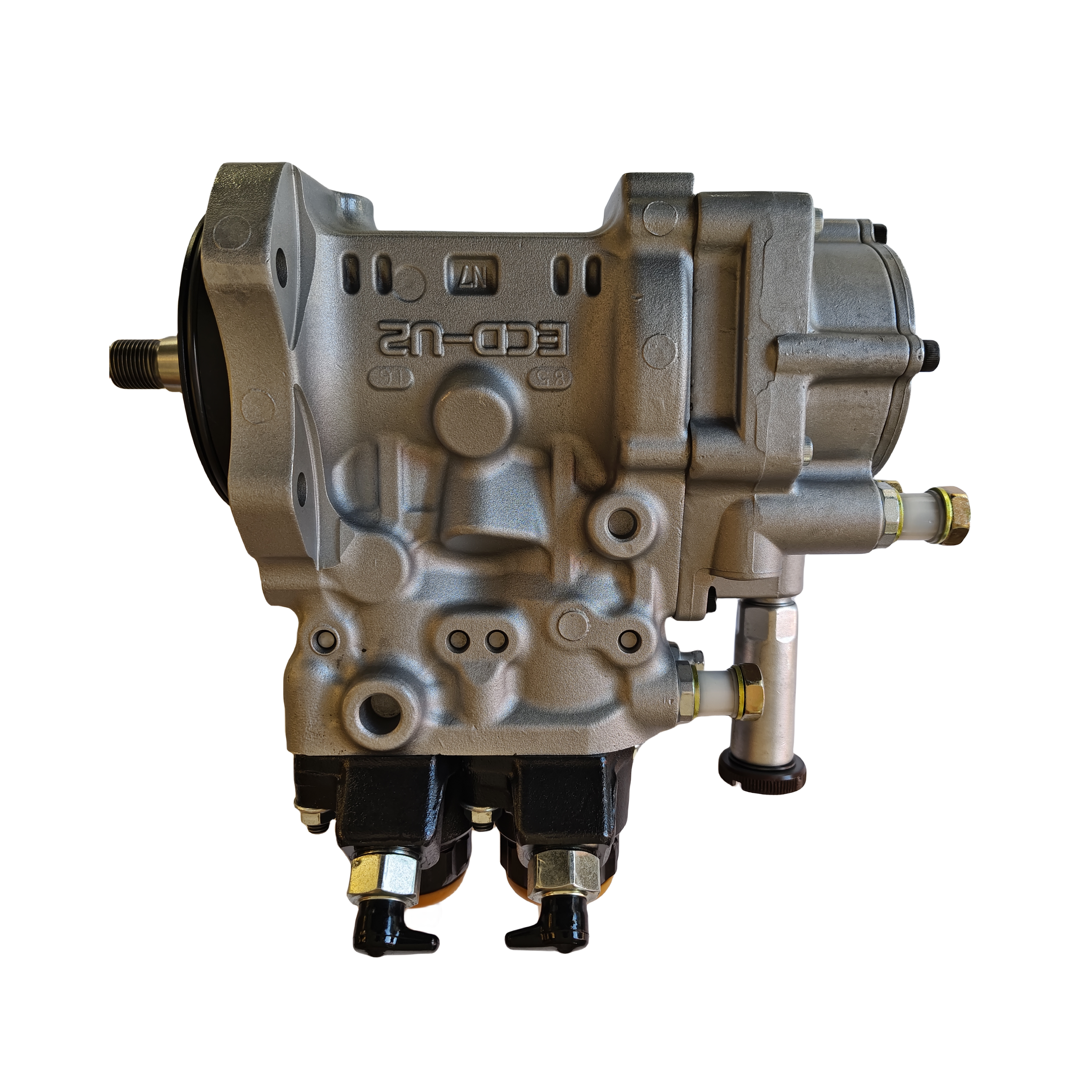

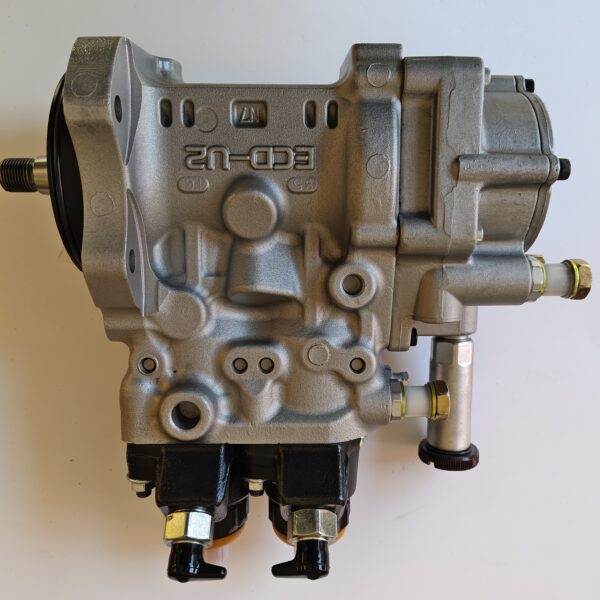

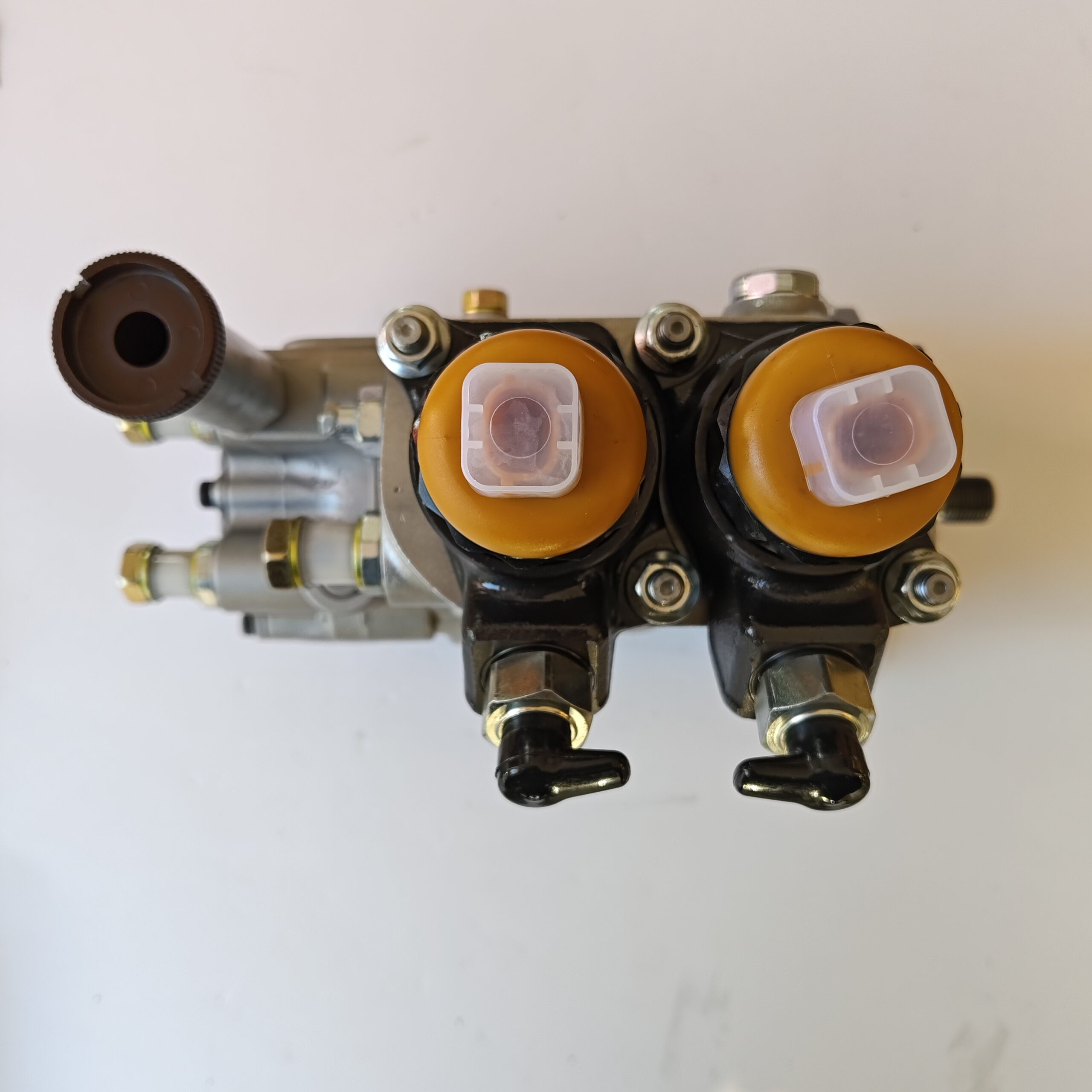

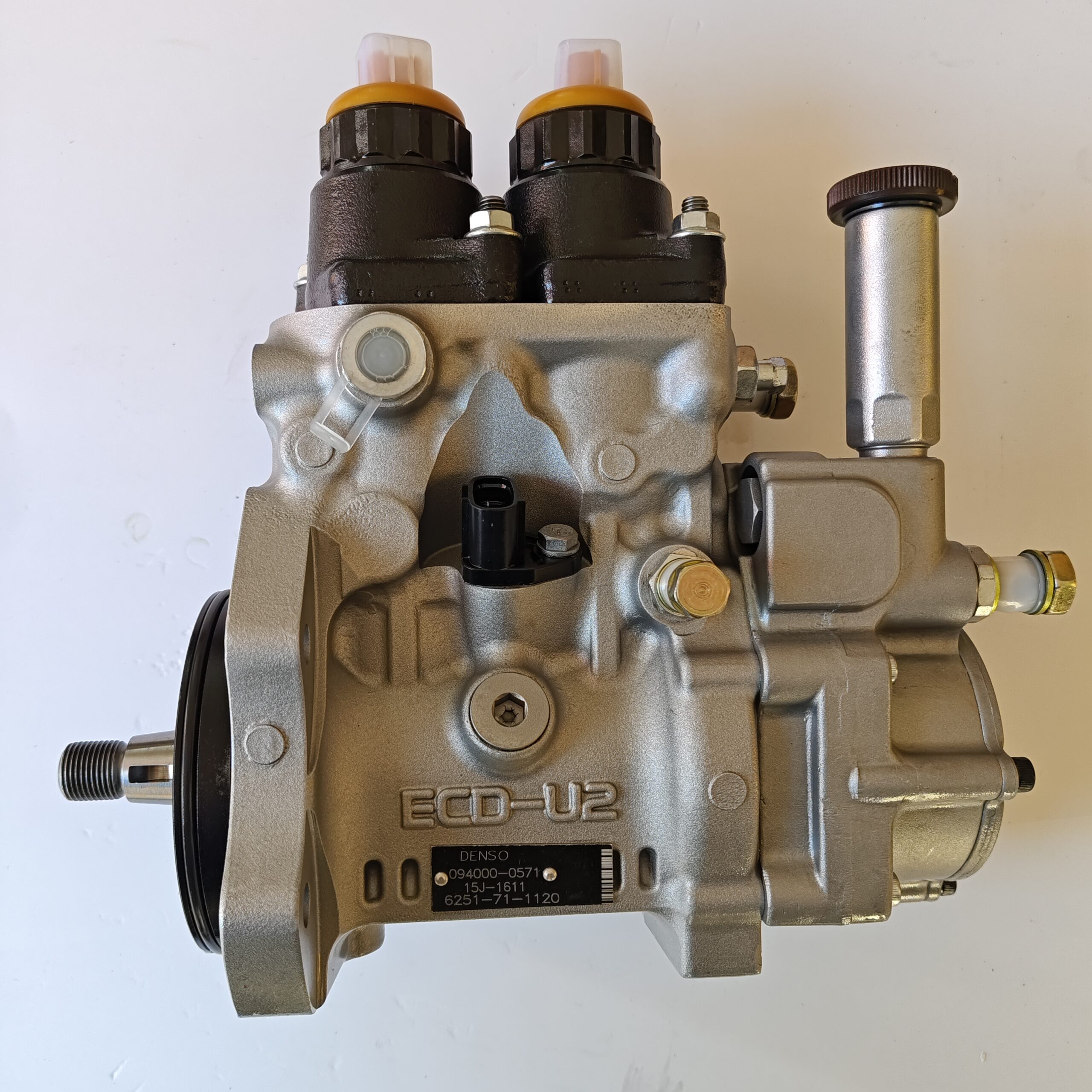

Fuel Injector Pump Assy 6251-71-1120 for Komatsu PC400-8, WA470, WA480 engine SAA6D125E

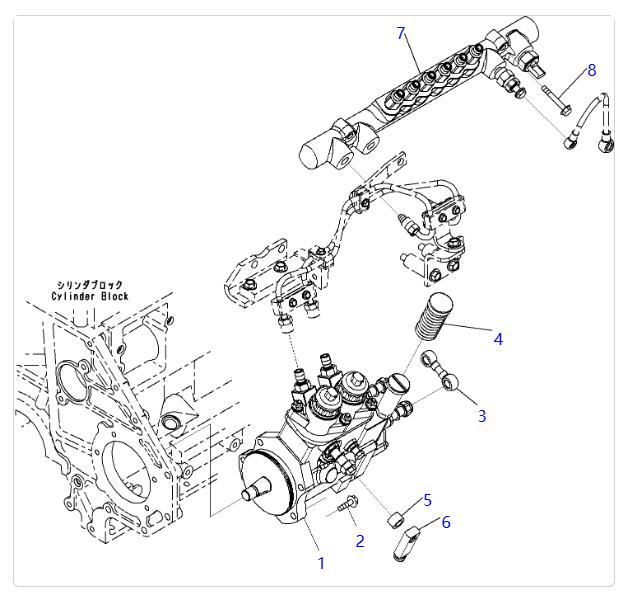

Pos.	Part No	Qty	Parts name	Comments
1.	6251-71-1120	[1]	Pump Komatsu	15.3 kg.
			[“SN: 560004-UP”] analogs:[“6251711121”]
2.	01435-01035	[4]	Bolt Komatsu	0.03 kg.
			[“SN: 560004-UP”]
3.	6217-71-5910	[1]	Tube Komatsu	0.07 kg.
			[“SN: 560004-UP”]
4.	6217-71-1910	[1]	Cover Komatsu	0.01 kg.
			[“SN: 560004-UP”] analogs:[“ND0900610011”]
5.	6151-51-8490	[1]	Spacer Komatsu	0.06 kg.
			[“SN: 560004-UP”]
6.	6156-71-5370	[1]	Joint Komatsu	0.15 kg.
			[“SN: 560004-UP”]
7.	6261-71-1210	[1]	Common Rail Assembly Komatsu	5.352 kg.
			[“SN: 560004-UP”] analogs:[“6261711220”]
8.	01435-01050	[2]	Bolt Komatsu	0.037 kg.
			[“SN: 560004-UP”]
