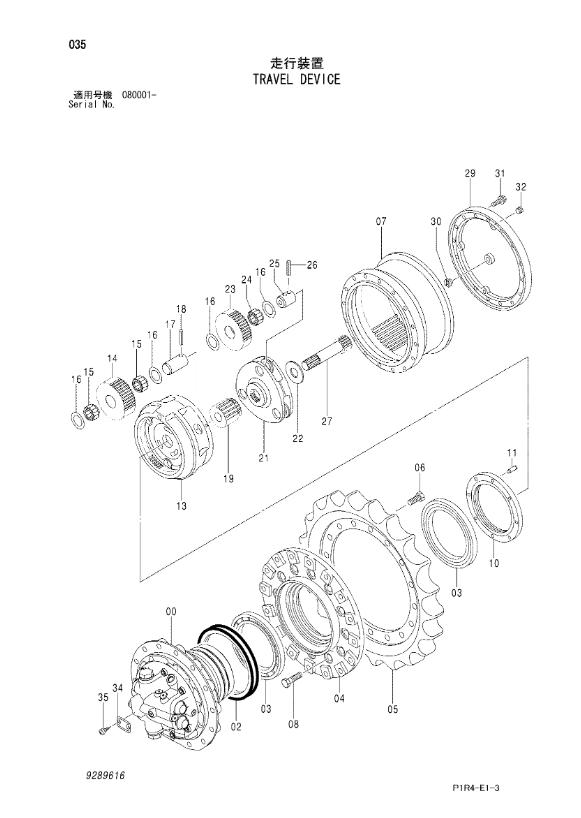

Parts on group TRAVEL DEVICE:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

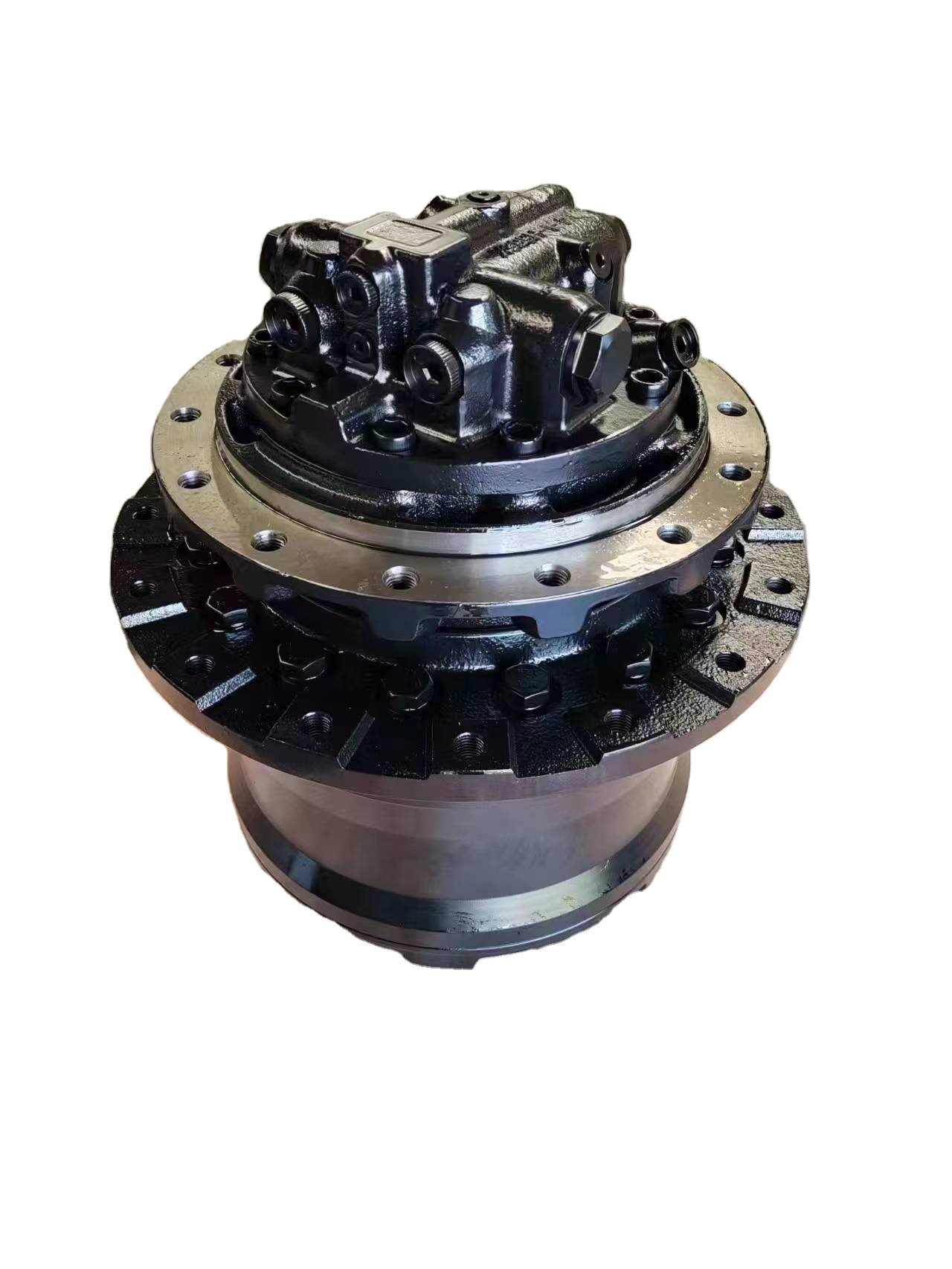

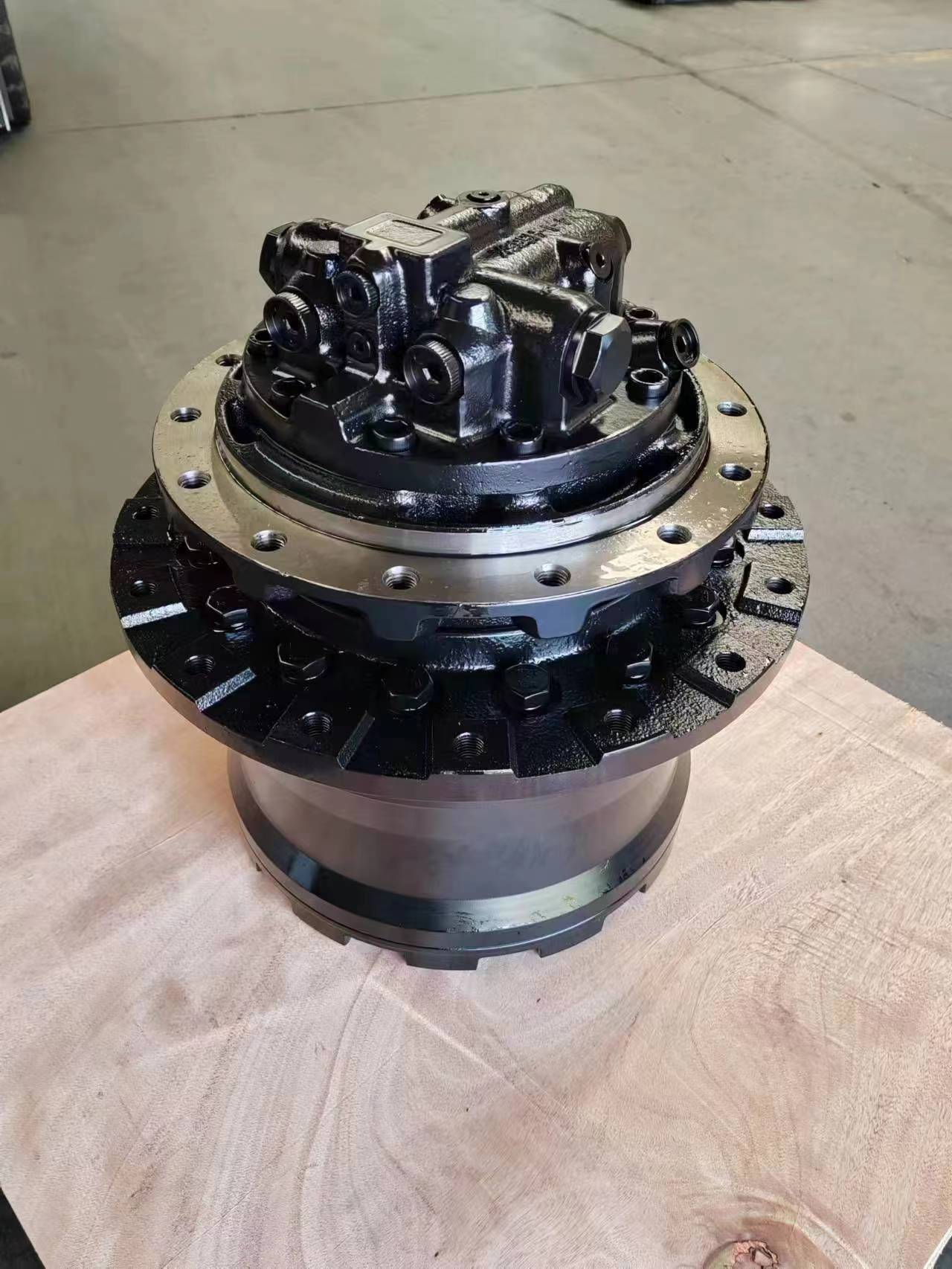

| 9289616 | [2] | TRAVEL DEVICE ASS’Y | I 9289617 (for assembly of machine) | |
| 9289617 | [2] | TRAVEL DEVICE ASS’Y | (for transportation) | |
| 00. | 9289613 | [1] | MOTOR;OIL | I 9289614 (for assembly of machine) |
| 00. | 9289614 | [1] | MOTOR;OIL | (for transportation) |
| 02. | 4110369 | [1] | SEAL;GROUP | |
| 03. | 4321887 | [2] | BRG.;ROL. | |
| 04. | 1028028 | [1] | DRUM | |
| 05. | 1028027 | [1] | SPROCKET | |
| 06. | J931640 | [16] | BOLT | |
| 07. | 1028042 | [1] | GEAR;RING | |
| 08. | J931660 | [16] | BOLT | |
| 10. | 3085728 | [1] | NUT | |
| 11. | 4436242 | [1] | PIN;KNOCK | |
| 13. | 1028041 | [1] | CARRIER | |
| 14. | 3088341 | [3] | GEAR;PLANETARY | |
| 15. | 4354289 | [6] | BRG.;NEEDLE | |
| 16. | 4192982 | [12] | PLATE;THRUST | |
| 17. | 4245966 | [3] | PIN | |
| 18. | 4144020 | [3] | PIN;SPRING | |
| 19. | 3085569 | [1] | GEAR;SUN | |
| 21. | 2044805 | [1] | CARRIER | |
| 22. | 4418771 | [1] | SPACER | |
| 23. | 3087676 | [3] | GEAR;PLANETARY | |
| 24. | 4354278 | [3] | BRG.;NEEDLE | |
| 25. | 4178203 | [3] | PIN | |
| 26. | 4192020 | [3] | PIN;SPRING | |
| 27. | 2043769 | [1] | SHAFT;PROP. | |
| 29. | 2044809 | [1] | COVER | |
| 30. | 4631350 | [1] | PIN;STOPPER | |
| 31. | 4609016 | [12] | BOLT;SEMS | I 4699148 |
| 31. | 4699148 | [12] | BOLT;SEMS | |
| 32. | 4245797 | [3] | PLUG | |
| 34. | +++++++ | [1] | NAME-PLATE | |
| 35. | M492564 | [2] | SCREW;DRIVE |
