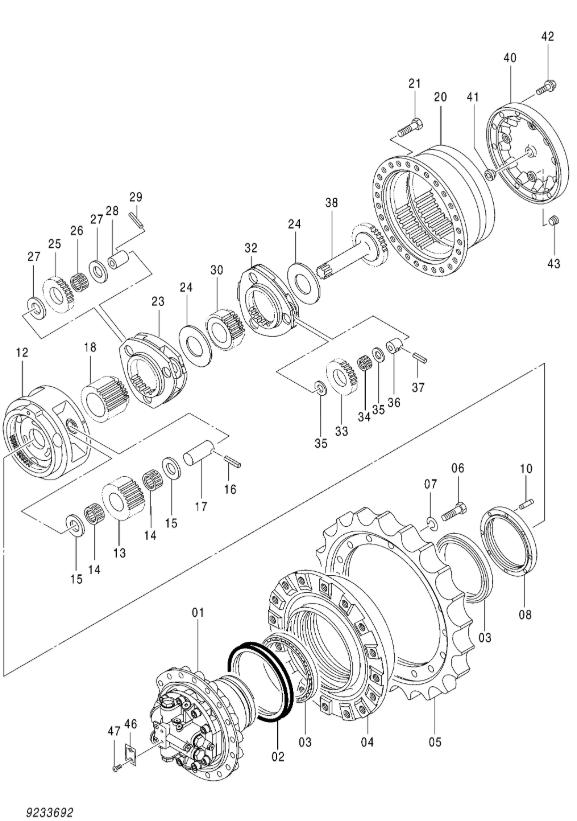

Parts on group TRAVEL DEVICE:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

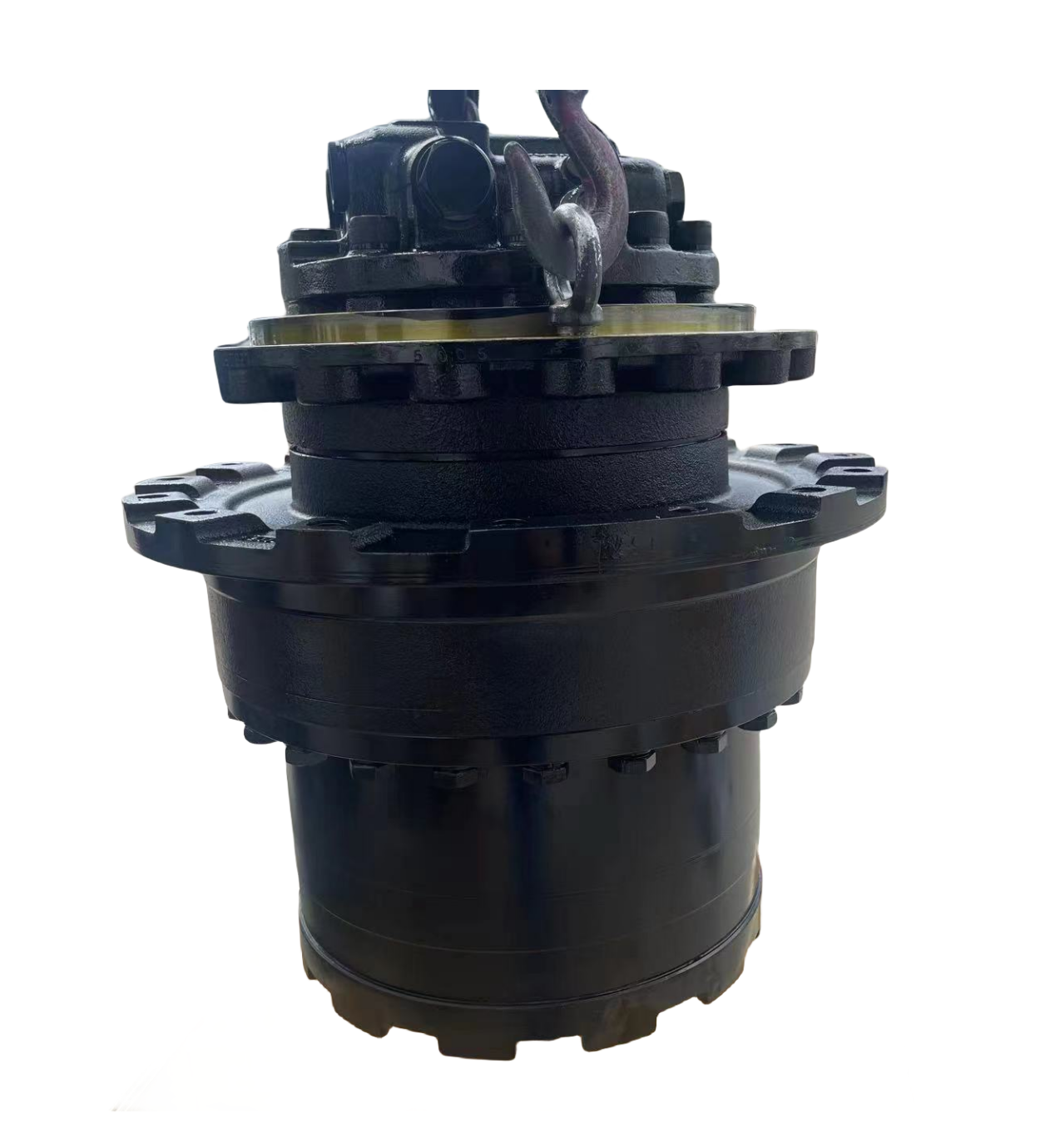

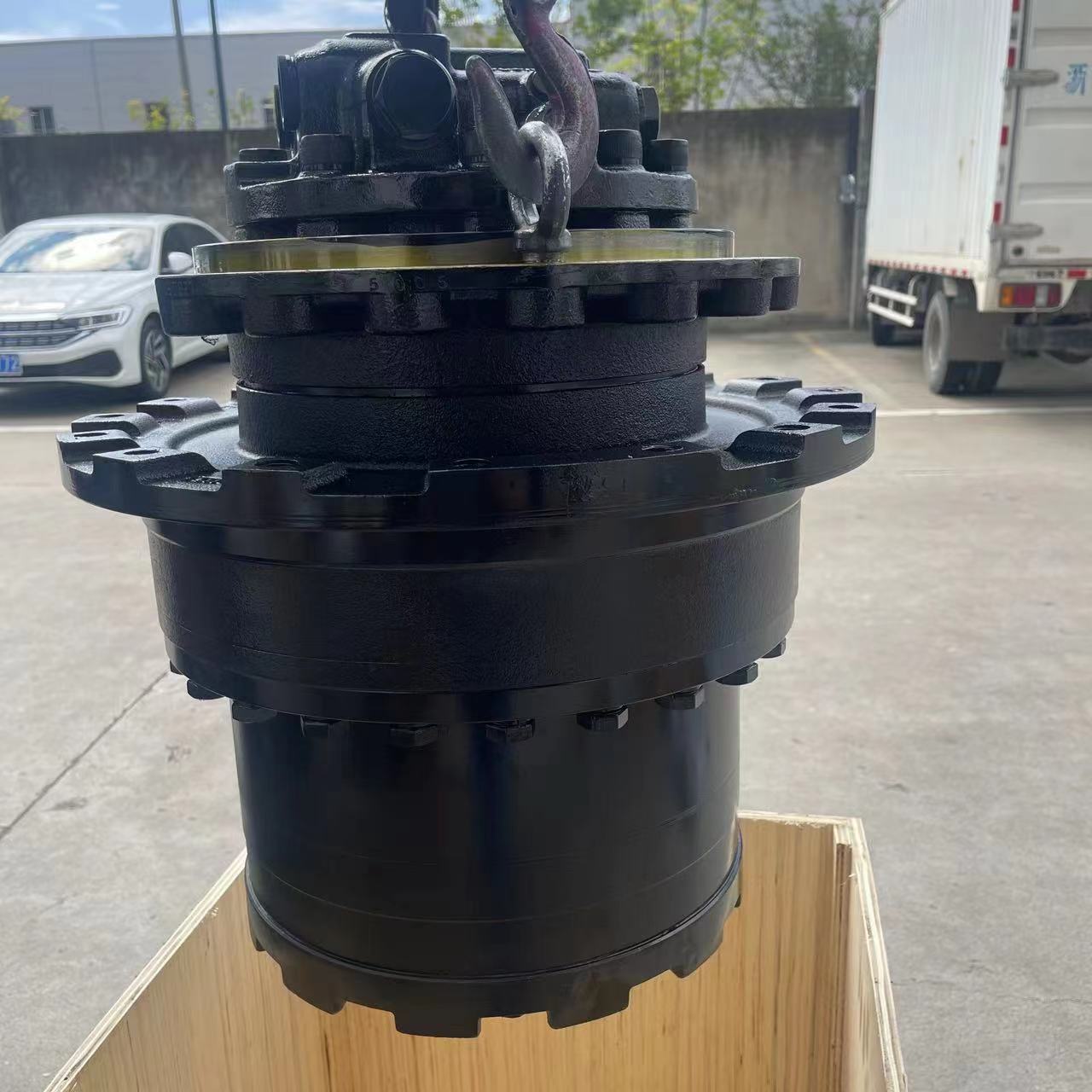

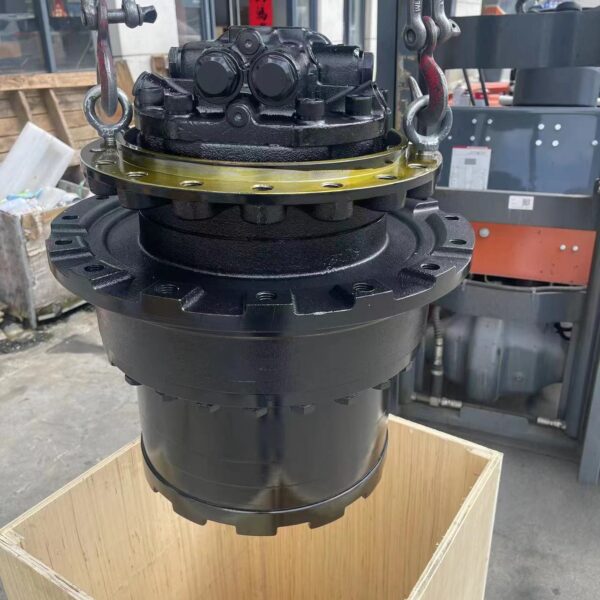

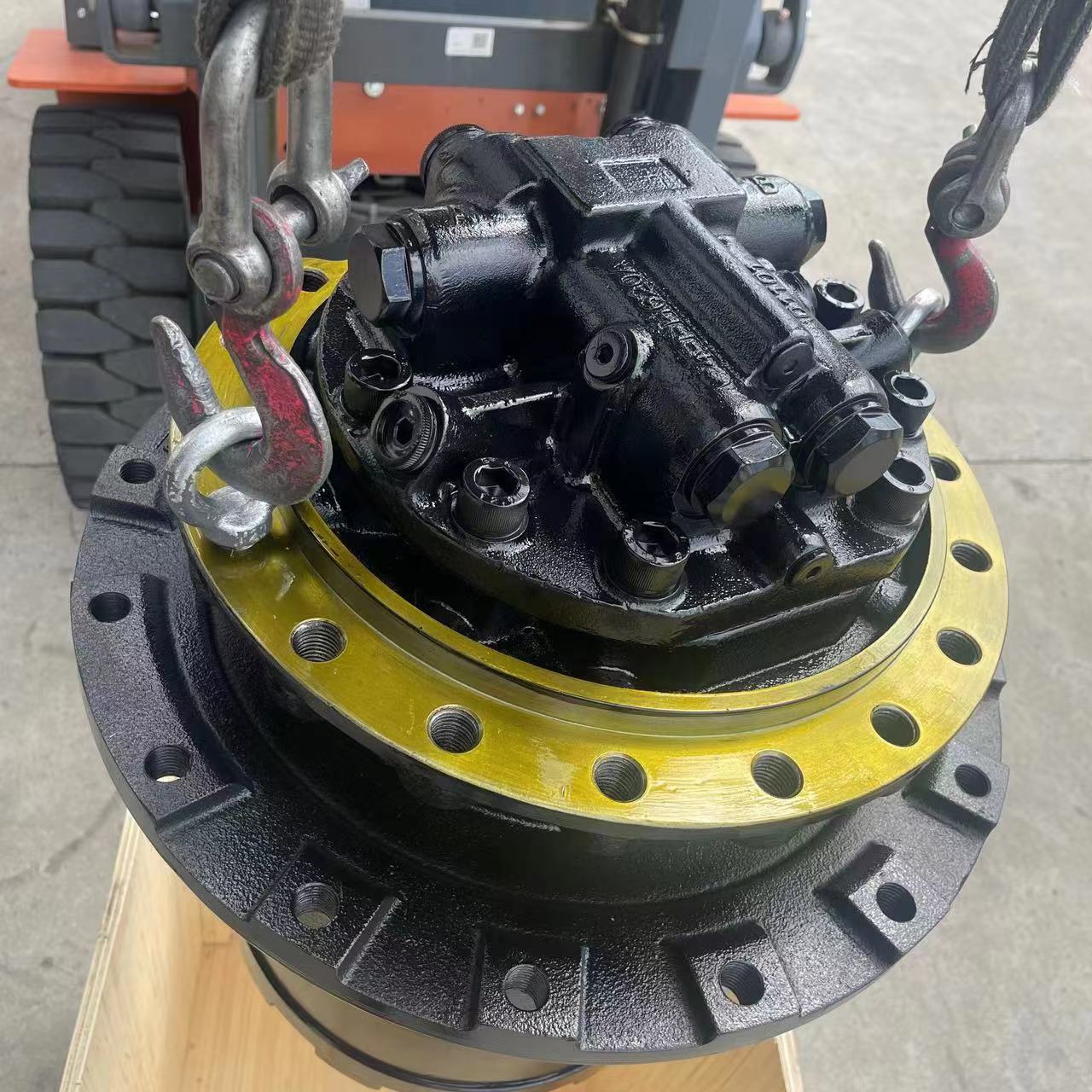

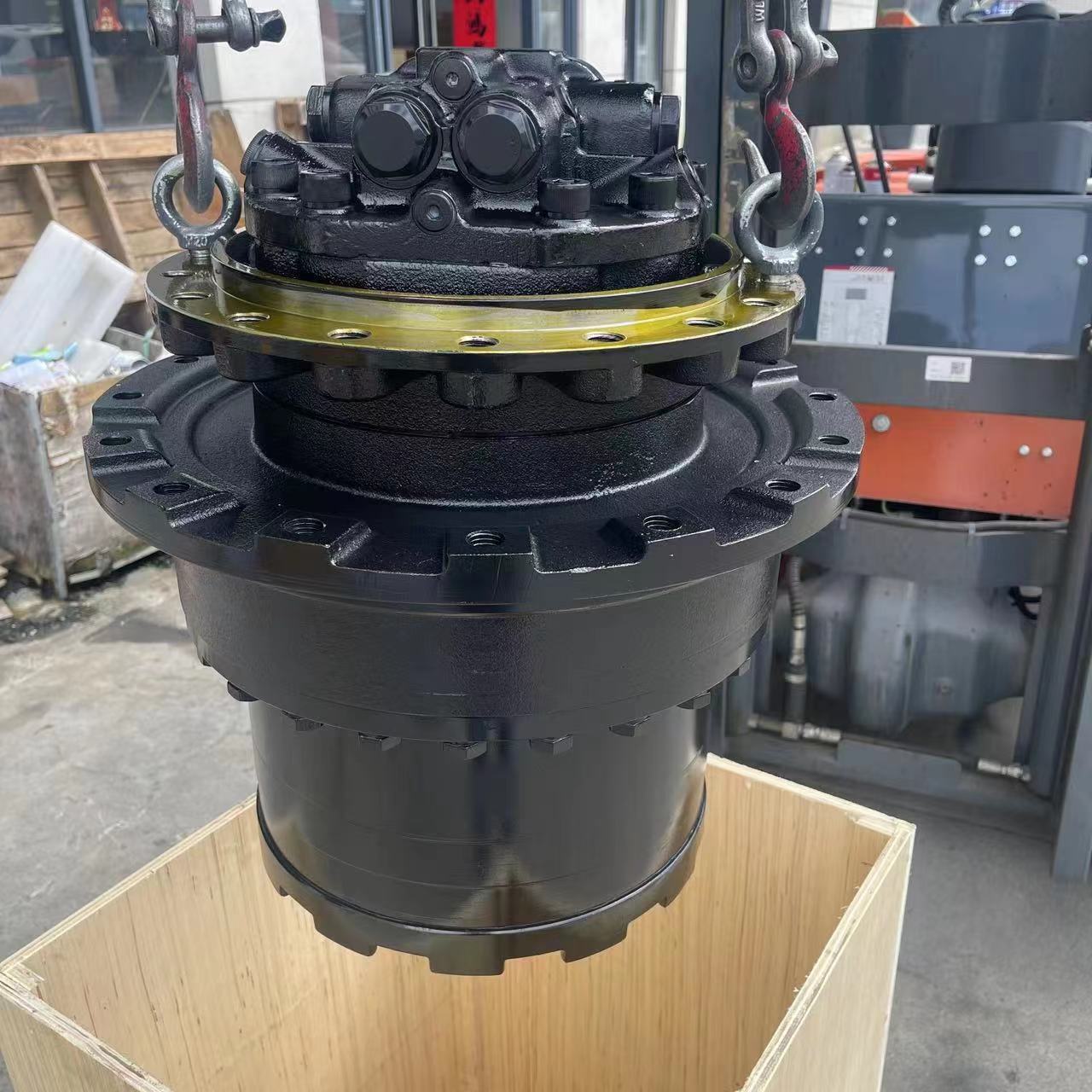

| 9233692 | [1] | TRAVEL DEVICE | I 9261222 <for assembly of machine> | |
| 9261222 | [1] | TRAVEL DEVICE | <for transportation> | |
| 01. | 9257254 | [1] | MOTOR;OIL | I 9258325 <for assembly of machine> |
| 01. | 9258325 | [1] | MOTOR;OIL | <for transportation> |
| 02. | 4634693 | [1] | SEAL;GROUP | |
| 03. | 4246793 | [2] | BRG.;ROL. | |
| 04. | 1033090 | [1] | DRUM | |
| 05. | 1033091 | [1] | SPROCKET | |
| 06. | J932055 | [18] | BOLT | |
| 07. | A590920 | [18] | WASHER;SPRING | |
| 08. | 3086531 | [1] | NUT | |
| 10. | 4436242 | [1] | PIN;KNOCK | |
| 12. | 1025875 | [1] | CARRIER | |
| 13. | 3084353 | [3] | GEAR;PLANETARY | |
| 14. | 4438593 | [6] | BRG.;NEEDLE | |
| 15. | 4284521 | [6] | PLATE;THRUST | |
| 16. | 4116309 | [3] | PIN;SPRING | |
| 17. | 4315838 | [3] | PIN | |
| 18. | 3082156 | [1] | GEAR;SUN | |
| 20. | 1025787 | [1] | GEAR;RING | |
| 21. | J931640 | [24] | BOLT | |
| 23. | 2042432 | [1] | CARRIER | |
| 24. | 4401293 | [2] | SPACER | |
| 25. | 3082155 | [3] | GEAR;PLANETARY | |
| 26. | 4438592 | [3] | BRG.;NEEDLE | |
| 27. | 4192982 | [6] | PLATE;THRUST | |
| 28. | 4402086 | [3] | PIN | |
| 29. | 4192020 | [3] | PIN;SPRING | |
| 30. | 3082149 | [1] | GEAR;SUN | |
| 32. | 2050691 | [1] | CARRIER | |
| 33. | 3100544 | [3] | GEAR;PLANETARY | |
| 34. | 4406589 | [3] | BRG.;NEEDLE | |
| 35. | 4192910 | [6] | PLATE;THRUST | |
| 36. | 4210853 | [3] | PIN | |
| 37. | 4173093 | [3] | PIN;SPRING | |
| 38. | 2050692 | [1] | SHAFT;PROP. | |
| 40. | 2034833 | [1] | COVER | |
| 41. | 4478346 | [1] | PIN;STOPPER | |
| 42. | 4699148 | [12] | BOLT;SEMS | |
| 43. | 4245797 | [3] | PLUG | |
| 46. | +++++++ | [1] | NAME-PLATE | |
| 47. | M492564 | [2] | SCREW;DRIVE |
