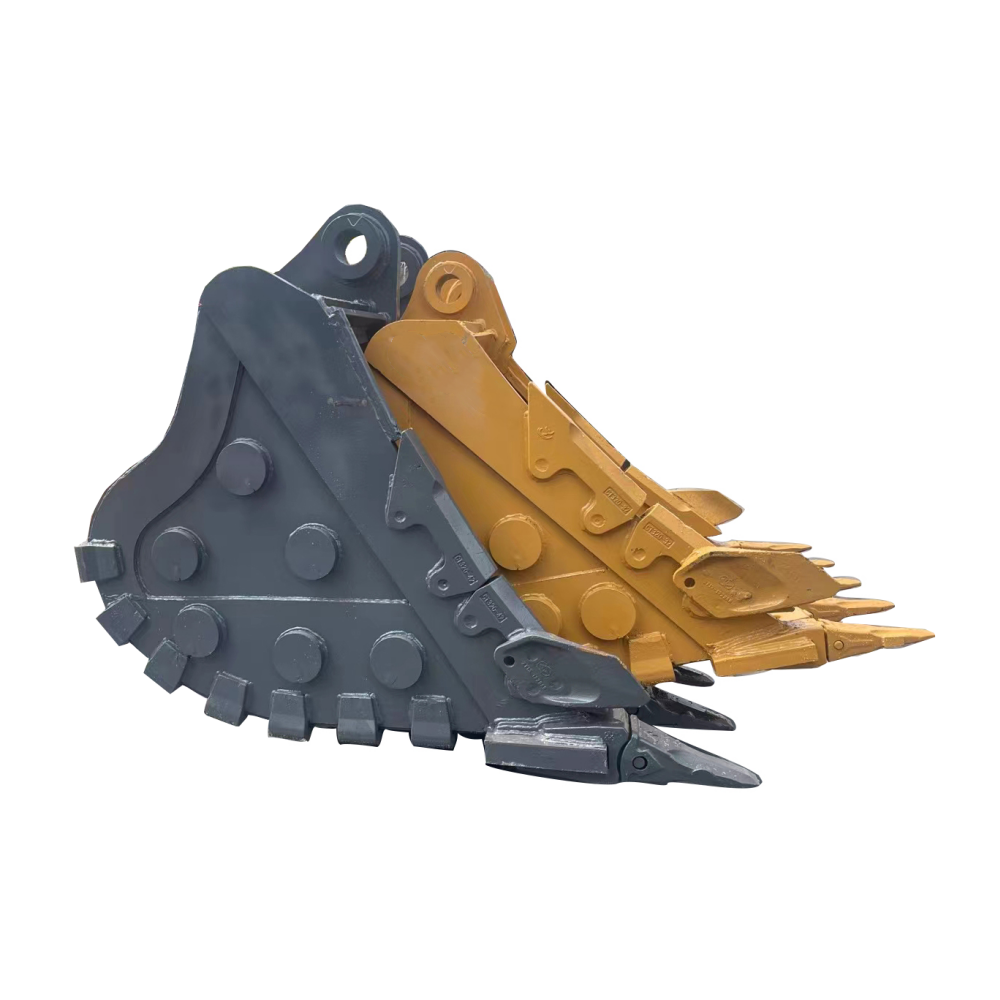

Excavator Digging Bucket for DOOSAN DAEWOO DX260 DH280 DH290-5 DH300-5

DOOSAN	LINK		ARM		CENTERS
MODEL	DIAMATER (C)	WIDTH (A)	DIAMATER (D)	WIDTH (B)
DH30	35	130	35	130	180
DH35	40	130	40	130
DH55	45	155	45	155	260
DH55-V	45	155	45	155	260
DH60-7	45	160	45	160
DH80	45	200	45	200	290
DH130-5	65	260	65	260
DH150LC-7	65	252	65	252
DH215-7	80	305	80	305	460
DH220-7	80	305	80	305	460
DH225-7	80	305	80	305	460
DH258	80	305	80	305	460
DX260	80	335	80	335
DH280	90	395	90	395
DH290-5	90	395	90	395
DH300-5	90	395	90	395
DH340	100	430	100	430	550
DH350	100	380	100	380
DH360	100	410	100	410
DH370	100	410	100	410
DH380	100	410	100	410	555
DH420	110	442	110	442	540
DH500	120	470	120	470

TYPES	CUTTING EDGE		WEAR BARS		APPLICATION
	THICKNESS	MATERIAL	LATERAL	VERTICAL
STANDARD BUCKET	GENERALLY THINK	ROUTINE			LIGHT OPERATION TASK
HEAVY DUTY BUCKET	SLIGHTLY THINK	TEETH & CUTTING: ADD HARDNESS MATERIAL	THICKNESS: CUSTOM		DIGGING HARD SOIL AND GRAVEL
ROCK BUCKET	THICKEN	TEETH & CUTTING: ADD HIGH HARDNESS MATERIAL	THICKNESS: CUSTOM	VERTICAL-CURVE	HEAVY TASK SUCH AS SOLID ROCK, BLASTED ORE
