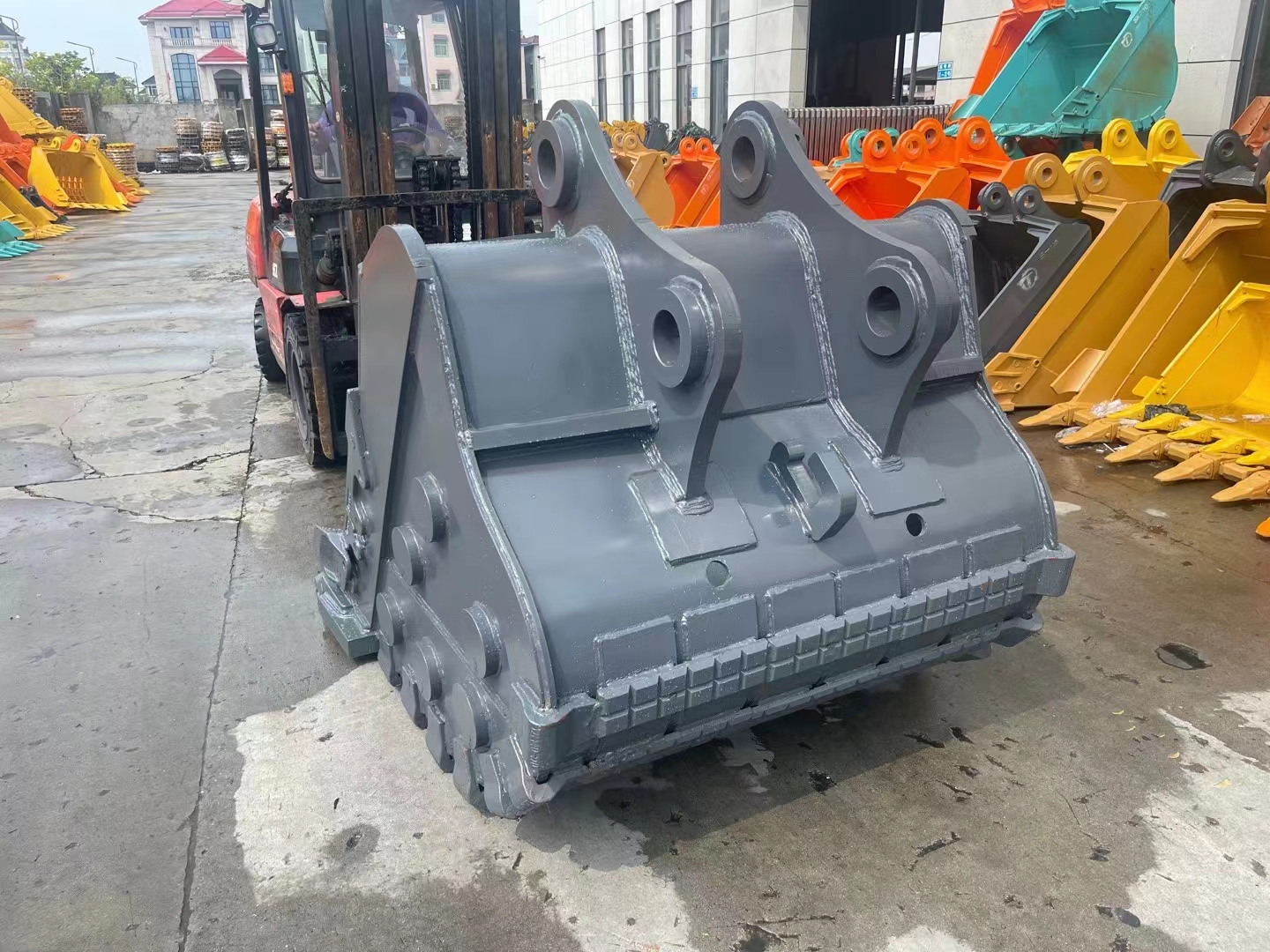

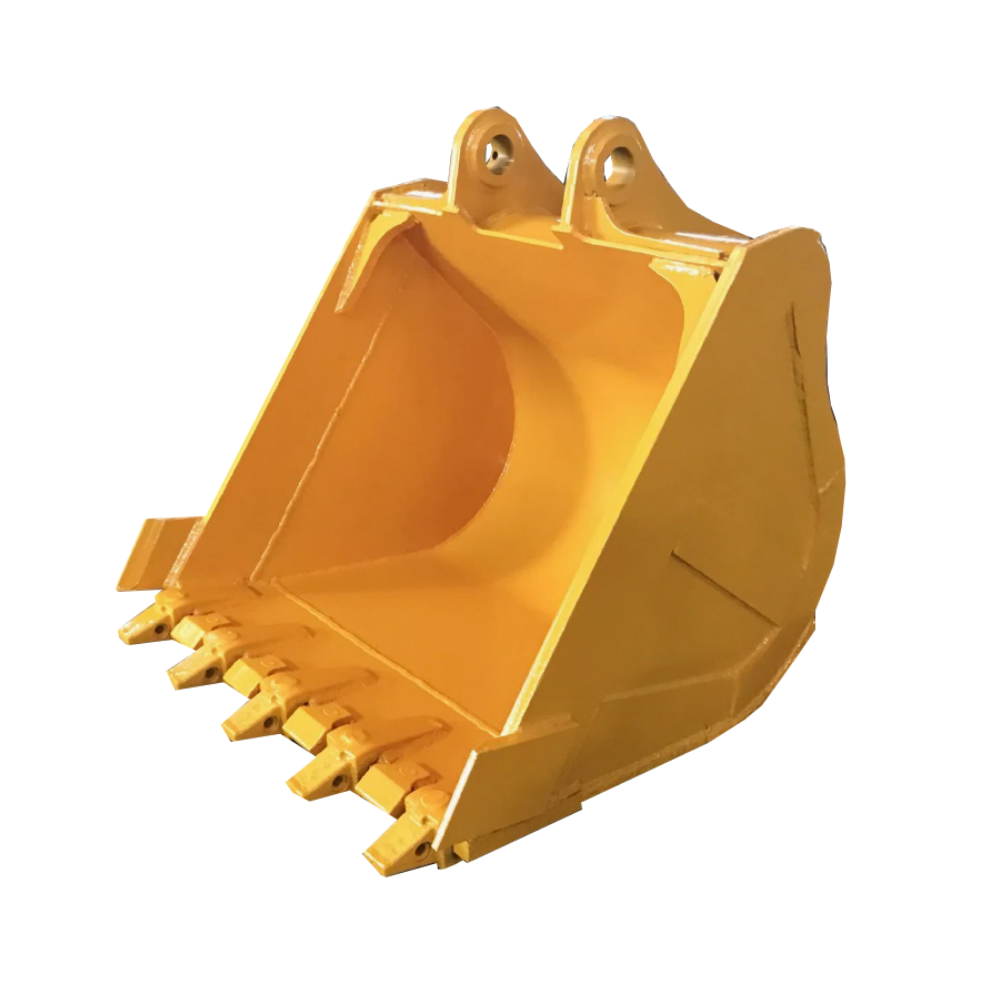

Excavator Digging Bucket for Caterpillar CAT307D CAT308 CAT311 CAT120B CAT200B

CAT MODEL	LINK		ARM		CENTERS
	DIAMATER (C)	WIDTH (A)	DIAMATER (D)	WIDTH (B)
CAT301	30	105	30	105	126
CAT303	40	136	40	136	200
CAT305	45	156	45	156	260
CAT306	45	160	45	160	260
CAT410-E	45	210	45	260	340
CAT55	45	160	45	160	255
CAT66	45	160	45	160	256
CAT70	45	185	45	185	315
CAT80	50	210	50	210	310
CAT85	50	210	50	210
CAT307D	50	200	50	200	300
CAT308	50	185	50	185	300
CAT311	65	220	65	220	407
CAT120B	65	220	65	210
CAT312C	65	220	65	220	407
CAT312D	65	210	65	215	410
CAT315D	70	280	70	280	460
CAT318	70	287	70	287
CAT200B	80	315	80	315	440
CAT320B	80	315	80	315	450
CAT320C	80	315	80	315	450
CAT320D	80	310	80	310	445
CAT323D	80	310	80	310	445
CAT324D	90	350	90	350	470
CAT325D	90	350	90	350	485
CAT328D	85	350	85	350	490
CAT329D	90	350	90	350	490
CAT330C	80	385	90	390	525
CAT330D	90	380	100	380	500
CAT332D	90	385	100	385	515
CAT336D	90	385	100	385	500
CAT345C	100	447	110	447	600
CAT345D	100	439	110	439

TYPES	CUTTING EDGE		WEAR BARS		APPLICATION
	THICKNESS	MATERIAL	LATERAL	VERTICAL
STANDARD BUCKET	GENERALLY THINK	ROUTINE			LIGHT OPERATION TASK
HEAVY DUTY BUCKET	SLIGHTLY THINK	TEETH & CUTTING: ADD HARDNESS MATERIAL	THICKNESS: CUSTOM		DIGGING HARD SOIL AND GRAVEL
ROCK BUCKET	THICKEN	TEETH & CUTTING: ADD HIGH HARDNESS MATERIAL	THICKNESS: CUSTOM	VERTICAL-CURVE	HEAVY TASK SUCH AS SOLID ROCK, BLASTED ORE
